Daikin Heating & Cooling
Content languageEnglish
Description
This template allows you to control your Daikin Heatpump with the Daikin HomeHub- EKRHH over Modbus TCP or Modbus RTU. There are three different ways how to connect Daikin with Loxone:
- Daikin Altherma 3+ HomeHub as TCP - Daikin Altherma 3+ HomeHub RTU with Loxone Modbus Extension - Daikin Altherma 3+ HomeHub RTU with a Loxone Modbus Air.
Depending on variation of your project you can choose between Miniserver, Miniserver Go or Miniserver Compact
- The template is prepared using "UseCase 3- Modbus TCP/IP or RTU for Daikin Altherma" regarding the Installation manual of the HomeHub. - You can find the compatibility of your Daikin heatpump in the HomeHub Reference Installation manual in the download area of the template.
The choice of paring Daikin systems with Loxone offers the possibility of:
- integrating demand-based heating and cooling depending on e.g. presence or the protection of open windows - Active integration in interaction with e.g. PV- systems in a Loxone Energy Management - Using flexible electricity tariffs with the Spot Price Optimizer. - Use statistics ore individual notifications - Create your own individual schematics - Reduce cycles and operating hours of your Daikin heatpump. - Create e.g. yearly operation goals like certain annual runtime forces for hybrid systems e.g. (Heatpump 70% amount of energy, Gas heater 30% amount of energy) to fulfill the requirements of your local government. - Grid management according to §14a ENWG in Germany - In addition to the electrical power, the current and total thermal energy can also be visualized via the Loxone Energy Flow Monitor. To the compact overview for e.g. contractors. - Influence on the hot water circulation pump by controlling via the presence detectors. - Increased security through leakage detection or activation of IP cameras in the plant room.
With our step by step manual for collecting the heating or cooling demand and forwarding it to the HomeHub, we enable the interaction of the individual room control with the central heating/cooling system of Daikin. Please take a look on the Loxone Config sample file in the Library download area.
Structure Example Modbus TCP:
Daikin helpcenter, download area and activation of Modbus:
- If you need Informations to the products, like manuals or contacts to Daikin branches please use the link to the international homepage from Daikin. Please note that various documents in the appendix are only accessible to Daikin partners and are therefore checked for the latest version with the Daikin partner. - A Daikin MMI2 firmware version of at least 7.3.0 or higher is required to use the HomeHub as Interface to Loxone. The Daikin HomeHub can be automatically updated over the internet to add features, solve security issues, or resolve bugs. To enable automatic updates, you must connect the Daikin HomeHub with the router or modem of your internet provider using a LAN cable. The Daikin HomeHub will automatically connect to the internet and receive firmware updates as soon as they become available. The Daikin HomeHub must be powered on to receive updates. - If you need informations how to configure the HomeHub, please follow the Installation manual beginning at side 39.
UseCase: Integration of a HomeHub- EKRHH Residential building with heating, Hot water storage and heating circuits.
- Device Air/Water Heatpump Daikin Altherma 3 H HT-MT ECH2O - Hot Water Storage tank --> Controlled by Loxone - Without Heating/Cooling Buffer - Mixing circuit heating/cooling HC1 (e.g. ceiling) --> Controlled by Loxone
Functional Components required for Loxone Integration in the example schematic: (Detail information in the additional downloads: "Daikin Schematic UseCase Example" in German.)
Inputs and outputs · 52
| Name | Type | Unit |
|---|---|---|
| 38 State Heatpump Operation Mode | Modbus | <v> |
| 21 State Heatpump Error | Modbus | <v> |
| 32 State Heatpump Electrical heater | Modbus | <v> |
| 23 State Heatpump Error Sub Code | Modbus | <v> |
| 30 State Hot Water Circulationpump [PZ] | Modbus | <v> |
| 31 State Heatpump Compressor [C] | Modbus | <v> |
| 33 State Disinfection Operation mode | Modbus | <v> |
| 35 State Defrost/Starting Operation mode | Modbus | <v> |
| 36 State "Hot" Start | Modbus | <v> |
| 37 State 3-Way Valve Heat+Cool/ Hot Water [3UV1] | Modbus | <v> |
| 40 Actual Heatpump Flowtemperature after PlateHeatExchanger [PHE] | Modbus | °C |
| 41 Actual Heatpump Flowtemperature after Backupheater [BUH] | Modbus | °C |
| 42 Actual Heatpump Return Flowtemperature | Modbus | °C |
| 43 Actual Hot Water Storage Temperature [tWW] | Modbus | °C |
| 44 Actual Outsidetemperature [tAU] | Modbus | °C |
| 49 Actual Heatpump Flow Rate [E] | Modbus | l/h |
| 50 Actual External Roomtemperature | Modbus | °C |
| 51 Actual Heatpump Electrical Power | Modbus | kW |
| 52 State Hot Water Operation mode | Modbus | <v> |
| 53 State Heating/Cooling Operation mode | Modbus | <v> |
| 54 State Target Mainheating Flowtemperature Lower limit | Modbus | °C |
| 55 State Target Mainheating Flowtemperature Upper limit | Modbus | °C |
| 57 State Target Maincooling Flowtemperature Upper limit | Modbus | °C |
| 56 State Target Maincooling Flowtemperature Lower limit | Modbus | °C |
| 58 State Target Addheating Flowtemperature Lower limit | Modbus | °C |
| 59 State Target Addheating Flowtemperature Upper limit | Modbus | °C |
| 60 State Target Addcooling Flowtemperature Lower limit | Modbus | °C |
| 61 State Target Addcooling Flowtemperature Upper limit | Modbus | °C |
| 10 State Hot Water Storage Targettemperature | Modbus | °C |
| 2 State Cooling Target Supply Flowtemperature | Modbus | °C |
| 1 State Heating Target Supply Flowtemperature | Modbus | °C |
| 3 Heatpump Operation Mode | Modbus | <v> |
| 1 Heatpump Heating Target Supply Flowtemperature | Modbus | °C |
| 2 Heatpump Cooling Target Supply Flowtemperature | Modbus | °C |
| 6 Heating Room Targettemperature | Modbus | °C |
| 7 Cooling Room Targettemperature | Modbus | °C |
| 10 Hot Water Storage Targettemperature | Modbus | °C |
| 4 Space Heating/Cooling Operation Mode | Modbus | <v> |
| 9 Heatpump Quiet Mode Operation mode | Modbus | <v> |
| 12 Hot Water Storage Operation mode | Modbus | <v> |
| 13 Hot Water Storage Electrical Heater Operation mode | Modbus | <v> |
| 53 Weather Operation mode | Modbus | <v> |
| 54 Offset Weather Operation Mode Heating Supply Flow Targettemperature | Modbus | °C |
| 55 Offset Weather Operation Mode Cooling Supply Flow Targettemperature | Modbus | <v> |
| 56 Smart Grid Operation mode | Modbus | <v> |
| 57 Smart Grid Power Limitation Buffer | Modbus | kW |
| 58 Smart Grid Power Limitation General | Modbus | kW |
| 63 Offset Weather Operation Mode Heating Supply Flow Targettemperature | Modbus | °C |
| 64 Offset Weather Operation Mode Cooling Supply Flow Targettemperature | Modbus | °C |
| 65 Weather Operation mode HC2 | Modbus | <v> |
| 66 Offset Weather Operation Mode Heating Supply Flow Targettemperature HC2 | Modbus | °C |
| 67 Offset Weather Operation Mode Cooling Supply Flow Targettemperature HC2 | Modbus | °C |
FAQ
No questions have been answered yet.
Questions and answers
Altherma 3 R W + HomeHub
OpenAlle Werte vom Modbus haben 32765, was könnte hier die Fehlerursache sein?
8 replies
Software version vom HomeHub war zu alt, nach dem Update durch einen Daikin Techniker läuft alles einwandfrei.
Guten Abend Mario Mayer,
ich habe das selbe problem, kannst du mir sagen wie du das software update auf das gerät bekommen hast ?
Hallo Emily,
Das SW Update des HomeHub, sowie der Wärmepumpe hat ein Daikin Techniker durchgeführt.
lg Mario
Danke Mario für deine schnelle Antwort.
kannst du mir verraten welche Version deine Daikin Geräte haben. Dann kann ich das besser bei Daikin erklären.
LG
Emily
Hallo Emily
Aktuelle Version: Bedieneinheit Software V07.06.00 Bedieneinheit Micon ID ID20010E0C Micon ID des Innengeräts ID0223 Micon ID des Außengeräts IDFFFF Software Version Drahtlos Gateway: 3.3.0
Die Micon ID des Innengeräts vor dem SW Update war ID0222 und die SW Version der Pumpe war 07.05.00 jetzt nach Update V07.06.00, diesen beiden Versionsupgrades (ID0223 und V07.06.00) läuft die Kommunikation mit dem HomeHub und Loxone via Modbus.
lg
Hallo!
Darf ich fragen in welchem Land du wohnst? Mir sagt nämlich Daikin das es das in Österreich nicht gibt
Lg Christian
in Niederösterreich, also das mit Österreich ist dann wohl eine Ausrede :p

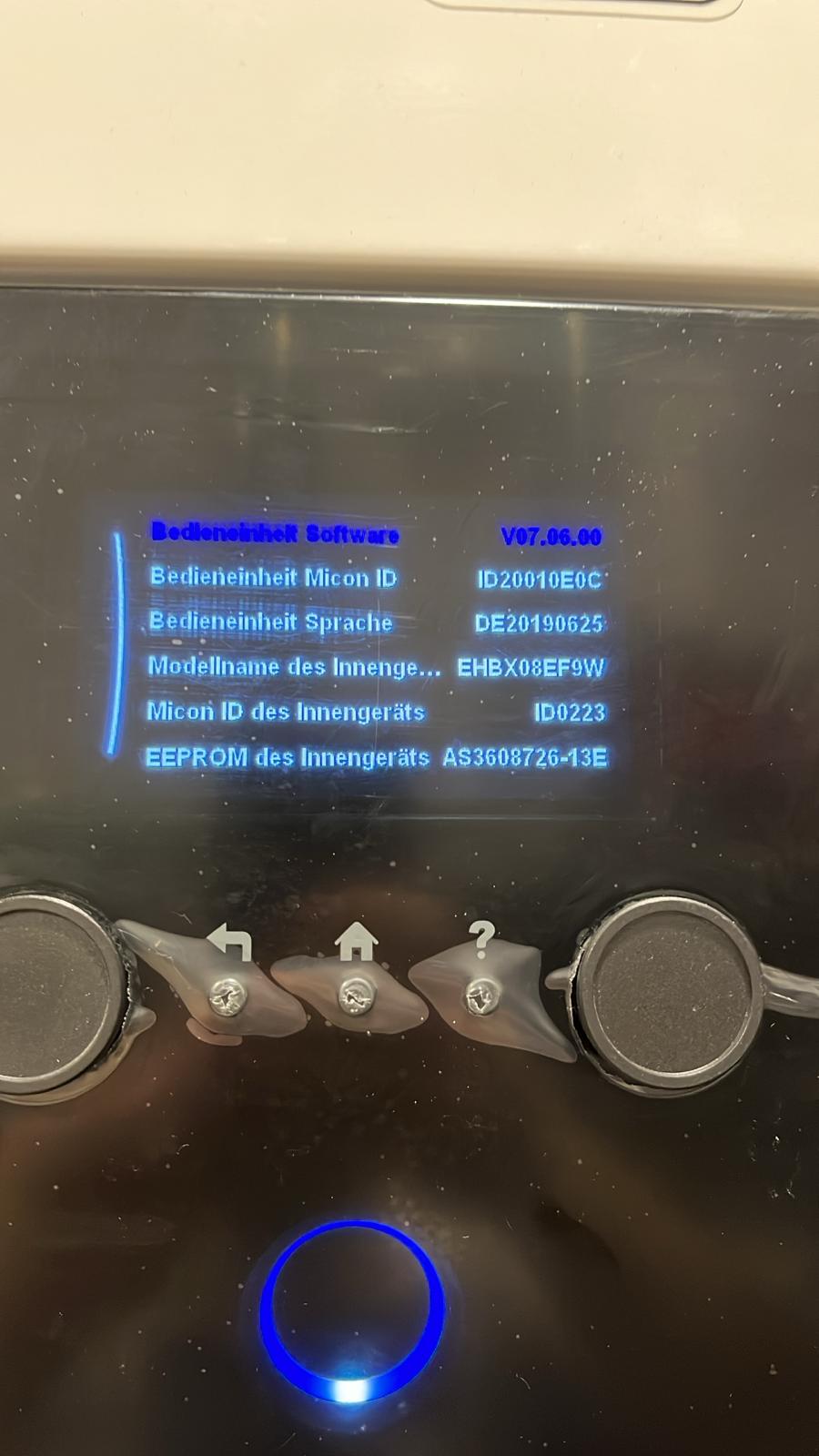

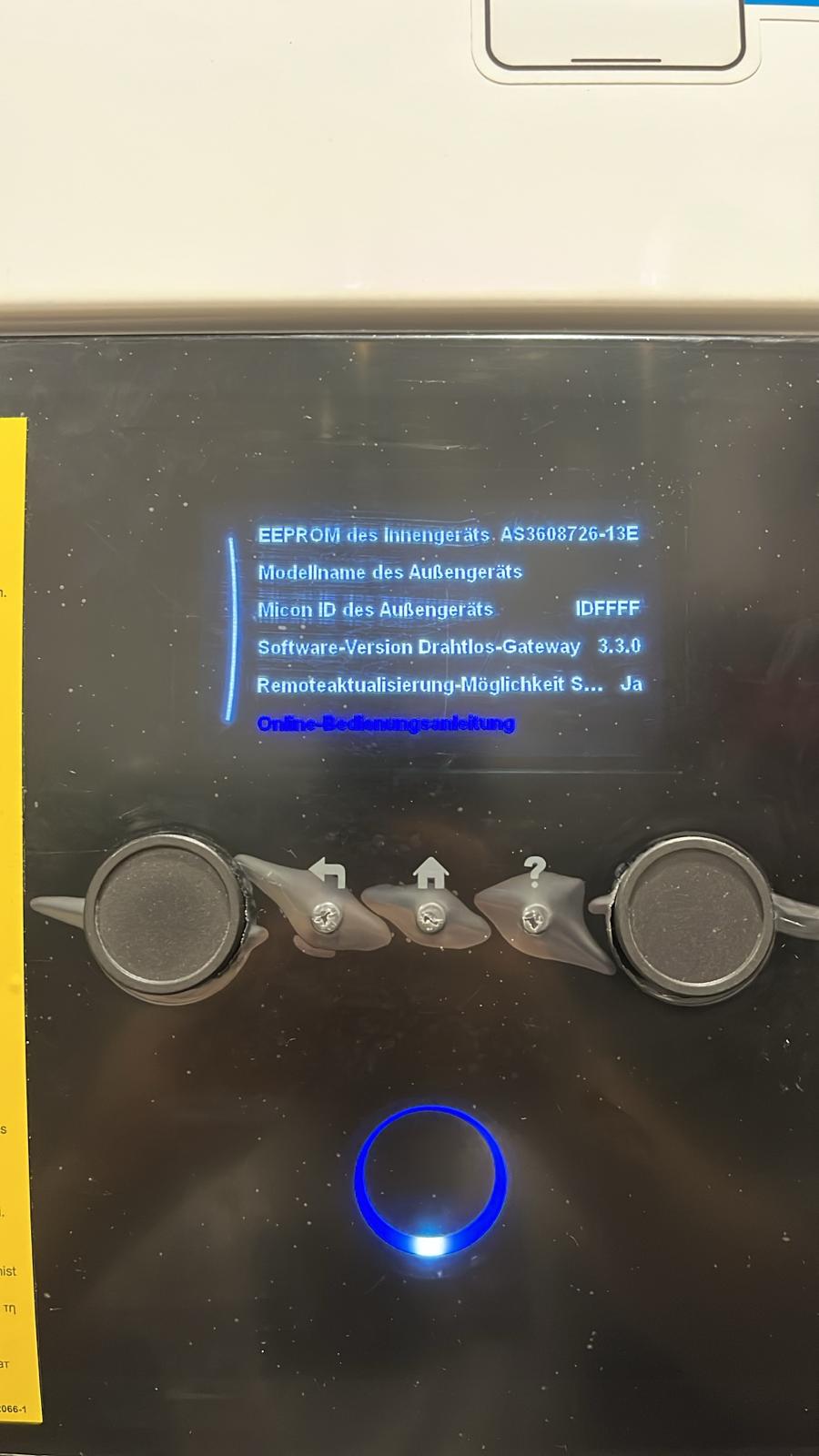

Ich hab dir mal die Bilder von der Daikin meines Kunden hier online gestellt, eventuell kann der Support / Techniker damit weiterhelfen die Firmware auf den neuesten Stand zu bringen: https://www.smartworx.at/custupload/D1.jpg https://www.smartworx.at/custupload/D2.jpg
Daikin LAN Adapter
OpenIst es möglich auch den Daikin Altherma LAN-Adapter (BRP069A61) mit Loxone zu steuern? Ich habe eine Hybridheizung aus Wärmepume und Gas und hoffe auf die Einbindung der PV über Loxone.
1 reply
Daikin Altherma heat pumps can be controller over modbus this can be found in this upload: https://library.loxone.com/detail/daikin-dcom-gateways-for-altherma-modbus-eng-1568/overview
The LAN-Adapter supports IFFTT but this is not supported trough the loxone system. Please check this with your local Daiking dealership if there is other communication protocols supported on this device.
53 State Heating/Cooling Operation mode always ON
OpenHello,
The state of my head-pump on "Hot Water + Heating/Cooling" mode is always on "Operating", but in reality the head-pump isn't running. In "Hot Water Only" mode, the state switch between Operating and Idle/Buffering as expected.
No Heating and no Hot Water but the state is still on "Operating" Why is the "53 State Heating/Cooling Operation mode" is always ON, even when the pump isn't operating at all?
regards jacques
1 reply
Hello Jacques,
I believe you are talking about the example config where 53 Wheater Operation Mode is connected to a constant value of 0 so this is following the documentation a fixed setpoint. This is do so the Loxone system can send the 1 and 2 Heatpump Heating/Cooling Target supply temperature.
The sending commands of the daikon heat pump do not have a function to disable the heating and cooling for 3 Heatpump Operation mode you can only select Auto, Heating, Cooling this means that the heat pump is always operational.
The 53 State heating/Cooling Operation mode will show than operational. If you switch to Hot Water only than the state wil go to Idle as expiated. The status block is reading to the value of the input. This means that the heat pump is sending this value. If you find the workings of this input not clear than we suggest contact daikin so they can further clarify why the heat pump is sending this value.
If you wand the status block to react to the off or to the climate controller central block we suggest adding the outputs from the blocks to the status block and adding extra rules so the state will be more dynamic.
ACS fork temperature
OpenHi, I've been looking into this and I'm not sure how to control the minimum domestic hot water temperature. Specifically, how do I control the storage tank's operating point so it starts before the temperature drops too low?
Thanks
No replies
